Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.

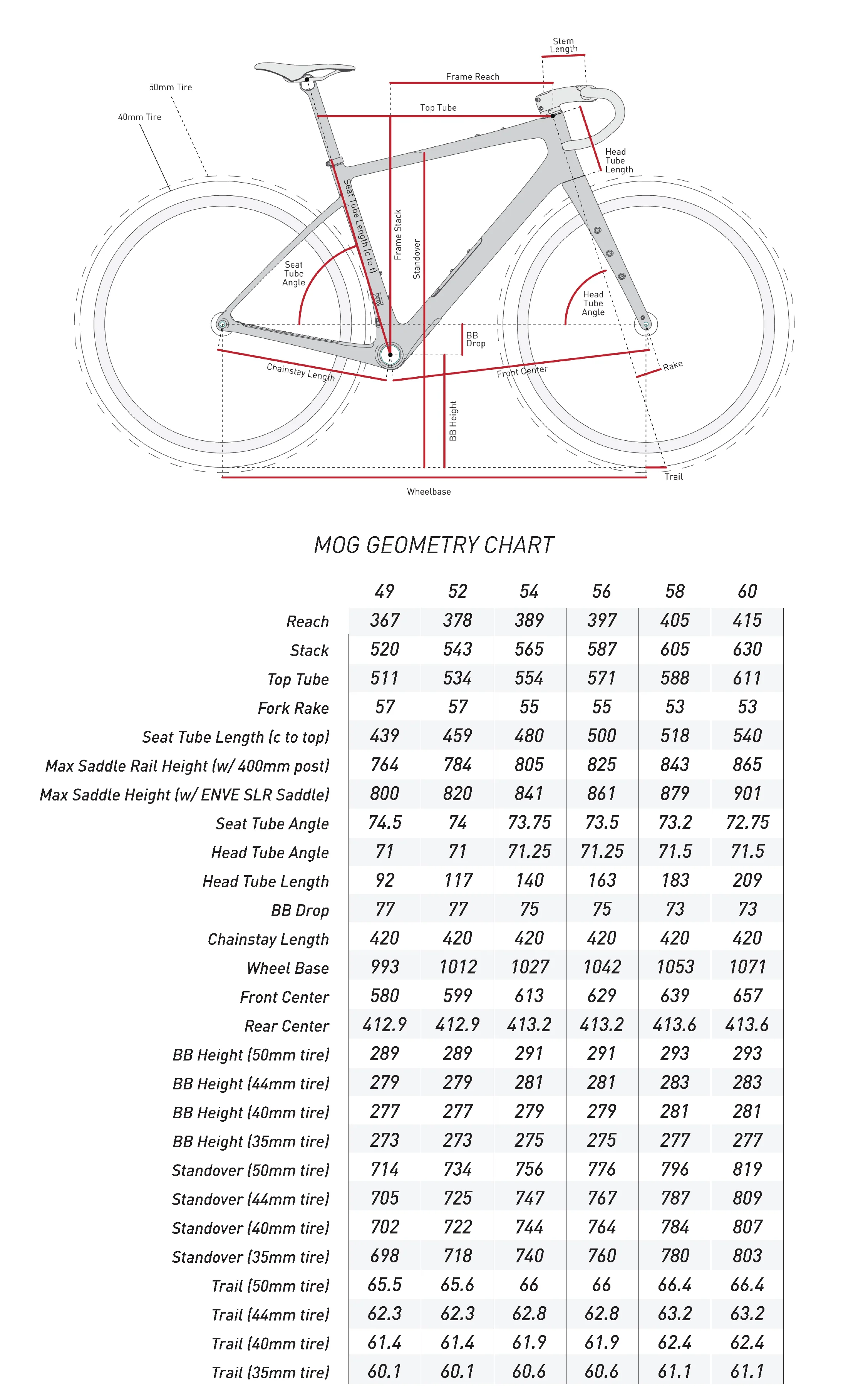

FIT AND GEOMETRY
At the foundation of performance are bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry won’t save your ride. You need a sound fit and refined geometry to give you the confidence and comfort needed to tap into your bike’s performance. Offered in seven sizes with five fork rakes, the Melee has your ideal fit in mind – like no other race bike on the market.

INTEGRATED FOR SPEED
The Integrated Front-End routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind.

ENVE FACTORY LIMITED WARRANTY
Coverage for the original owner against defects in materials and workmanship for the period of 5 years from the original purchase date. Product registration is required within 60 days of purchase. Secondhand owners are covered from the product’s date of manufacture.

ENVE INCIDENTAL DAMAGE PROTECTION
This program provides a no-charge replacement for your first three years of ownership and a prorated replacement thereafter for damage inflicted upon your frame when racing, riding, or transporting your bicycle. Original owners only. Product registration is required within 60 days of purchase to be eligible for this program.

Specifications
The MOG checks all the boxes for what a modern gravel bike should be. Versatility through design with an abundance of tire clearance, fitting up to a 700c x 50 mm tire, in addition to in-frame storage with the Cargo Bay’s use of the downtube’s open space. Rack mounts on the fork provide additional options for the weekend bikepacking getaway while not hindering the MOG’s performance in any way.

The ENVE MOG is available as a “Chassis Only” which includes the frame, fork, headset only.

Frame Material ENVE M.O.D Carbon, 12×142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12×100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application Gravel Racing/Riding/Exploration/Adventure
Sizes (cm) 49, 52, 54, 56, 58, 60
Fork Rake 57, 55, 53
Fork Axle to Crown 395mm
Frame Size/Fork Rake 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight 950g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter 27.2
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Brake Rotor Compatibility F: 160/180, R: 140/160 (Adapters Required)
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 700 x 36c
Optimal Tire Size 700 x 40c-44c
Maximum Listed Tire Clearance 700 x 50c
Frame Routing ENVE IN-Route Internal
Water Bottle Capacity 3
Top Tube Mounts Yes
Fender Mount Compatible Yes
Wheel Size 700C (650b Not Recommended)
Color Pantone 7528C (Equivalent to Sand)

Mfr Claimed Weight
950g +/- 2% (Size 56, Painted, No Hardware)
